Clione Limacina Tactile Switch
Kailh
The Kailh Clione Limacina Switch is built with a nylon PA12 stem and PC housing material. It is Kailh’s first fully transparent switch with its jellyfish-like streamer; one of their more unique designs. It’s unique appearance and natural feel adds a charming quality to the switch. If you are a fan of the transparent switch look, the Kailh Clione Limacina Switch is a must-have.
Appearance
Structure diagram

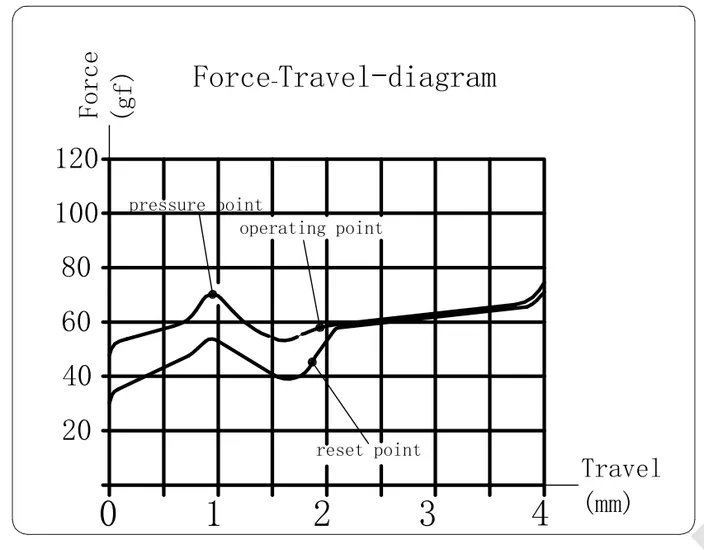

Travel diagram
Basic specs
| Mount | MX |
|---|---|
| Footprint | MX |
| Keycap stem | MX stem |
| Key pitch(mm) | 19.05 (MX) |
| Pins | 5 |
| Silent | − |
| RGB | ● |
| Factory lubed | ● |
| Stem material | Nylon PA12 |
| Top housing material | PC |
| Bottom housing material | PC |
| Protecting cover material | − |
| Slider material | − |
| Light guide | − |
| Spring material and plating | Spring steel |
| Contact material | Composite gold |
Detailed specs
| Model number | CPG151101S113 |
|---|---|
| Series | Clione Limacina Switch |
| Type | Tactile |
| Actuation force(gf) | 58 ±10 |
| Bottom-out force(gf) | − |
| Tactile force(gf) | 70 ±10 |
| Return force(gf) | >= 15 |
| Pre-travel(mm) | 1.9 ±0.5 |
| Total travel(mm) | 4.0 ±0.4 |
| Tactile position(mm) | − |
| Operating life(Cycle) | 50 × 10⁶ or more |
| Spring stages | − |
| Spring length(mm) | − |
| Spring weight(gf) | − |
Data updated: 2026-04-26
