Pro Light Green Switch
Kailh
The Kailh Pro Switch is part of the new series of Kailh switches. Different from regular switches, the Pro switch combines the best features of the Kailh Box switches and Kailh Speed switches to provide a cushioned stroke and a springy return. It features a faster and shorter activation period for a faster responsiveness than most mass-produced standard switches. That makes this switch an ideal and reliable option for gamers and typists.
Appearance
Structure diagram

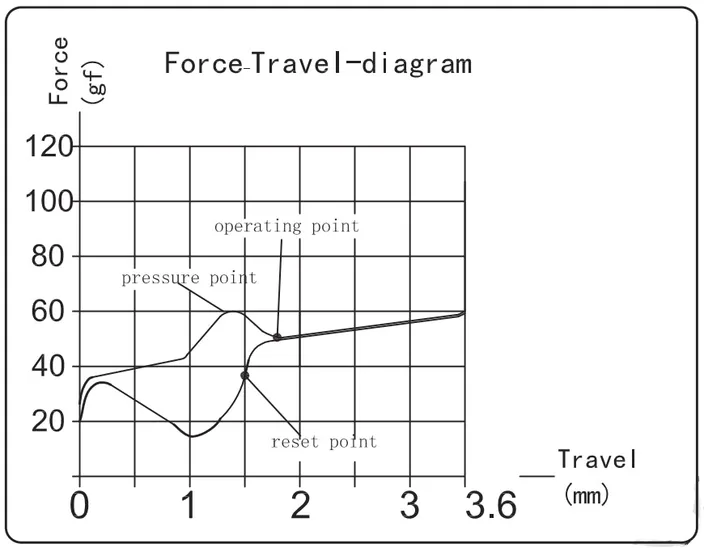

Travel diagram
Basic specs
| Mount | MX |
|---|---|
| Footprint | MX |
| Keycap stem | MX stem |
| Key pitch(mm) | 19.05 (MX) |
| Pins | 3 |
| Silent | − |
| RGB | ● |
| Factory lubed | − |
| Stem material | POM |
| Top housing material | PC |
| Bottom housing material | Nylon PA66 |
| Protecting cover material | − |
| Slider material | − |
| Light guide | − |
| Spring material and plating | Spring steel |
| Contact material | Composite gold |
Detailed specs
| Model number | CPG151101D223 |
|---|---|
| Series | Pro Switch |
| Type | Clicky |
| Actuation force(gf) | 50 ±10 |
| Bottom-out force(gf) | − |
| Tactile force(gf) | 60 ±10 |
| Return force(gf) | − |
| Pre-travel(mm) | 1.7 ±0.6 |
| Total travel(mm) | 3.6 ±0.6 |
| Tactile position(mm) | − |
| Operating life(Cycle) | 70 × 10⁶ or more |
| Spring stages | − |
| Spring length(mm) | − |
| Spring weight(gf) | − |
