Speed Pink Switch
Kailh
The Kailh Speed switches have a faster actuation and shorter travel distance than the normal Kailh switches. They are very responsive and ideal for gaming or rapid typing. The Kailh Speed switches are a great option if you want to boost your competitive edge.
Appearance
Structure diagram

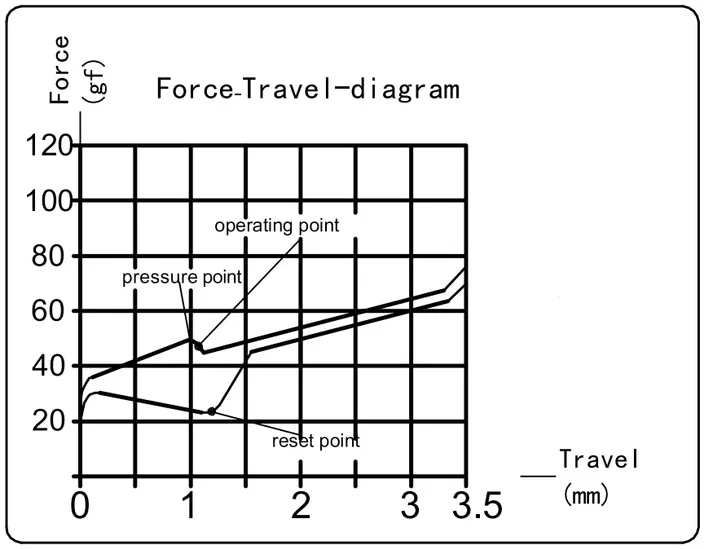

Travel diagram
Basic specs
| Mount | MX |
|---|---|
| Footprint | MX |
| Keycap stem | MX stem |
| Key pitch(mm) | 19.05 (MX) |
| Pins | 3 |
| Silent | − |
| RGB | ● |
| Factory lubed | − |
| Stem material | POM |
| Top housing material | PC |
| Bottom housing material | Nylon PA66 |
| Protecting cover material | − |
| Slider material | − |
| Light guide | − |
| Spring material and plating | Spring steel |
| Contact material | Composite gold |
Detailed specs
| Model number | CPG151101D215 |
|---|---|
| Series | Kailh Speed Switch |
| Type | Clicky |
| Actuation force(gf) | 50 ±10 |
| Bottom-out force(gf) | − |
| Tactile force(gf) | − |
| Return force(gf) | >= 12 |
| Pre-travel(mm) | 1.1 ±0.4 |
| Total travel(mm) | 3.5 ±0.4 |
| Tactile position(mm) | − |
| Operating life(Cycle) | 70 × 10⁶ or more |
| Spring stages | − |
| Spring length(mm) | − |
| Spring weight(gf) | − |
Data updated: 2026-04-26
