V5 Creamy Blue Pro Switch
Akko

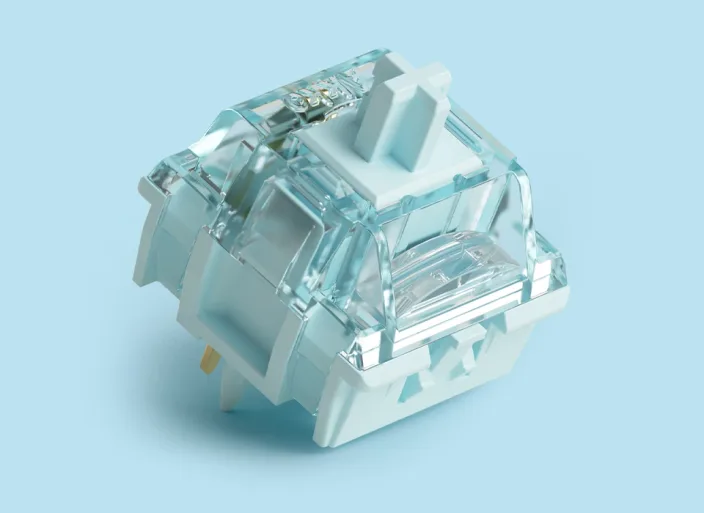

Appearance

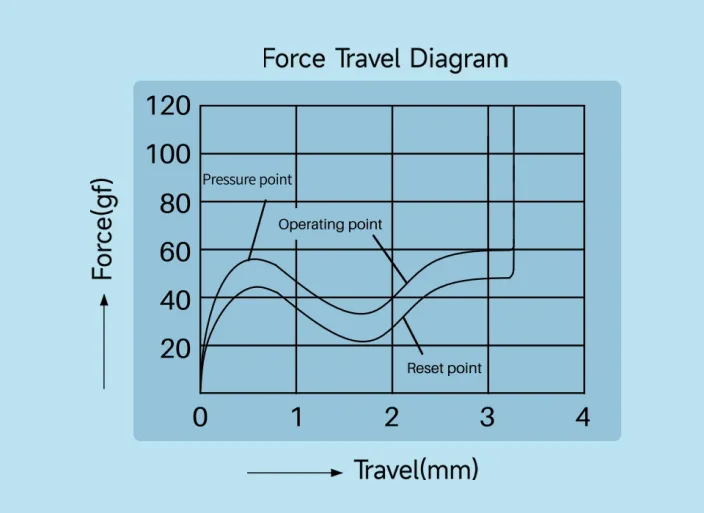

Travel diagram
Basic specs
| Mount | MX |
|---|---|
| Footprint | MX |
| Keycap stem | MX stem |
| Key pitch(mm) | 19.05 (MX) |
| Pins | 5 |
| Silent | − |
| RGB | ● |
| Factory lubed | ● |
| Stem material | − |
| Top housing material | − |
| Bottom housing material | − |
| Protecting cover material | − |
| Slider material | − |
| Light guide | − |
| Spring material and plating | − |
| Contact material | − |
Detailed specs
| Model number | − |
|---|---|
| Series | Akko V5 |
| Type | Tactile |
| Actuation force(gf) | 45 ±5 |
| Bottom-out force(gf) | − |
| Tactile force(gf) | 55 ±5 |
| Return force(gf) | − |
| Pre-travel(mm) | 2.2 ±0.5 |
| Total travel(mm) | 3.3 ±0.2 |
| Tactile position(mm) | 0.5 |
| Operating life(Cycle) | − |
| Spring stages | − |
| Spring length(mm) | − |
| Spring weight(gf) | − |
Data updated: 2026-05-02
