Chosfox X Masro Ragna Linear Switch
Chosfox
“Ragna” — inspired by the twilight of the gods — brings a mythic, end-of-days aesthetic to your keyboard. Drawing its name from Ragnarök, this linear switch embodies destruction, mystery, and power. Its black-and-orange theme mirrors a world ablaze at dusk — bold, brutal, and beautiful.

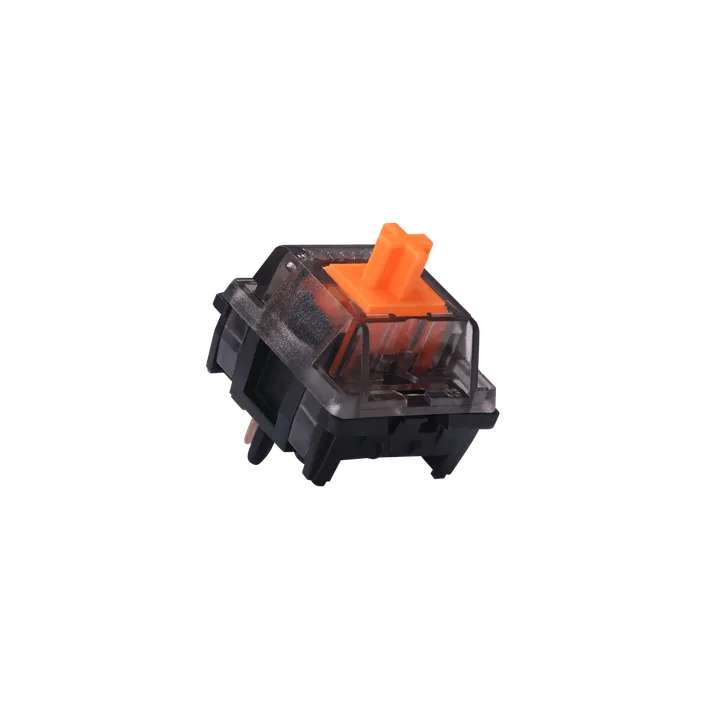

Appearance

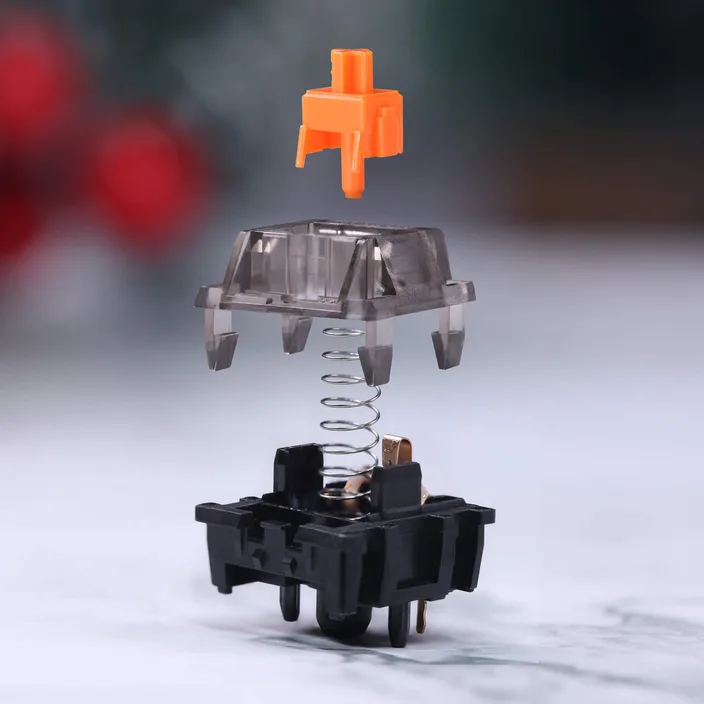

Structure diagram
Basic specs
| Mount | MX |
|---|---|
| Footprint | MX |
| Keycap stem | MX stem |
| Key pitch(mm) | 19.05 (MX) |
| Pins | − |
| Silent | − |
| RGB | − |
| Factory lubed | − |
| Stem material | POM |
| Top housing material | PC |
| Bottom housing material | Nylon |
| Protecting cover material | − |
| Slider material | − |
| Light guide | − |
| Spring material and plating | − |
| Contact material | − |
Detailed specs
| Model number | − |
|---|---|
| Series | − |
| Type | Linear |
| Actuation force(gf) | 45 |
| Bottom-out force(gf) | 55 |
| Tactile force(gf) | − |
| Return force(gf) | − |
| Pre-travel(mm) | 2.0 |
| Total travel(mm) | 3.7 |
| Tactile position(mm) | − |
| Operating life(Cycle) | − |
| Spring stages | − |
| Spring length(mm) | 22 |
| Spring weight(gf) | − |
Data updated: 2026-04-27
