Roseveil Silent Switch
Epomaker
Enjoy the thocky, tactile and incredibly satisfying typing with sound dampened mechanical keyboard but still find it too noisy? Following the success of our Sea Salt Silent and Nude Rosa, we are proud to present our new silent switch series - the Roseveil Silent Switch for quiet and creamy typing. Designed for office work and gaming, the Roseveil switch triggers at a super light 32gf force and 2.0mm travel while bottom-out at 41gf and 3.6mm, to relieve fingers from strain caused by heavy trigger force, making even long typing sessions at work a pleasant joy.

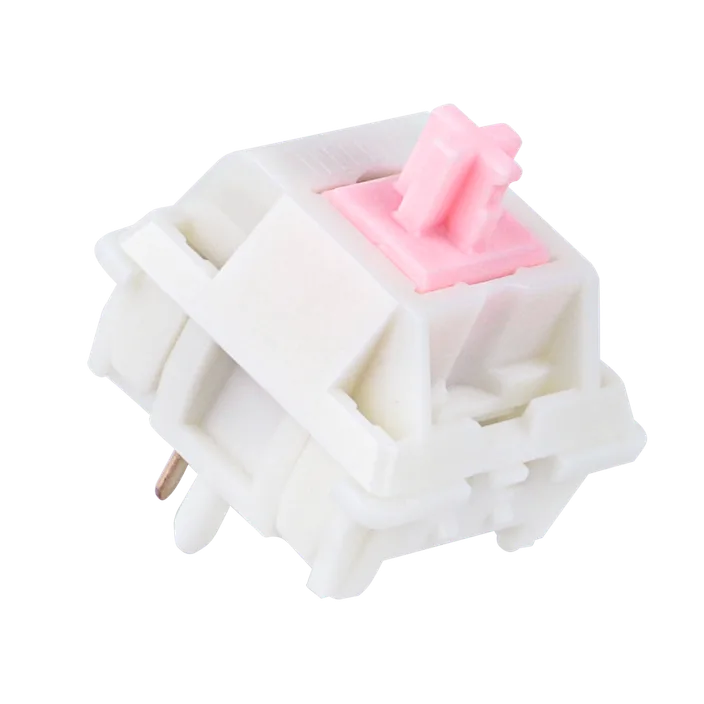

Appearance

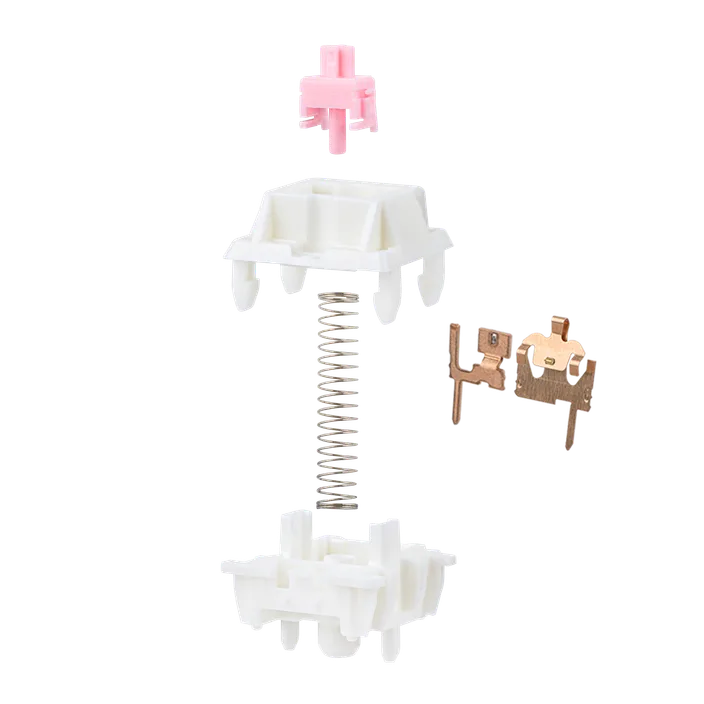

Structure diagram
Travel diagram
Basic specs
| Mount | MX |
|---|---|
| Footprint | MX |
| Keycap stem | MX stem |
| Key pitch(mm) | 19.05 (MX) |
| Pins | 5 |
| Silent | ● |
| RGB | ● |
| Factory lubed | ● |
| Stem material | PC |
| Top housing material | LY |
| Bottom housing material | LY |
| Protecting cover material | − |
| Slider material | − |
| Light guide | − |
| Spring material and plating | − |
| Contact material | − |
Detailed specs
| Model number | − |
|---|---|
| Series | − |
| Type | Linear |
| Actuation force(gf) | 32 ±5 |
| Bottom-out force(gf) | 41 ±5 |
| Tactile force(gf) | − |
| Return force(gf) | − |
| Pre-travel(mm) | 2.0 ±0.4 |
| Total travel(mm) | 3.6 ±0.4 |
| Tactile position(mm) | − |
| Operating life(Cycle) | − |
| Spring stages | − |
| Spring length(mm) | − |
| Spring weight(gf) | − |
Data updated: 2026-05-26
