Crystal Tactile Silent
Epomaker
Tired of the annoying clacking of mechanical keyboards while typing? Want a factory-lubed, plug-and-play silent mechanical switch that still delivers satisfying tactile feedback? Don’t worry—EPOMAKER Crystal Switches are expertly engineered to strike the perfect balance between silence and tactile response. With advanced compounds and a unique stem design, the Crystal Switches absorb vibrations and reduce clatter without compromising the crisp tactile bump.

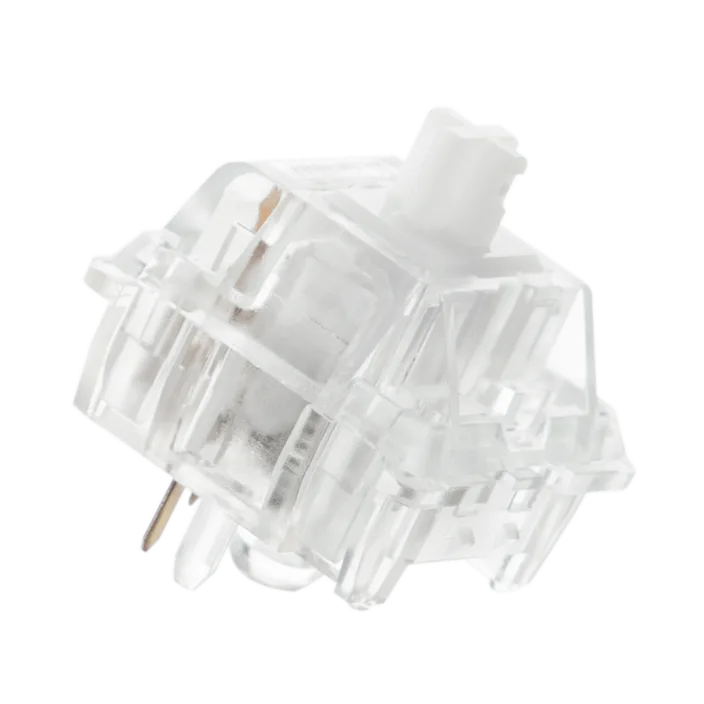

Appearance

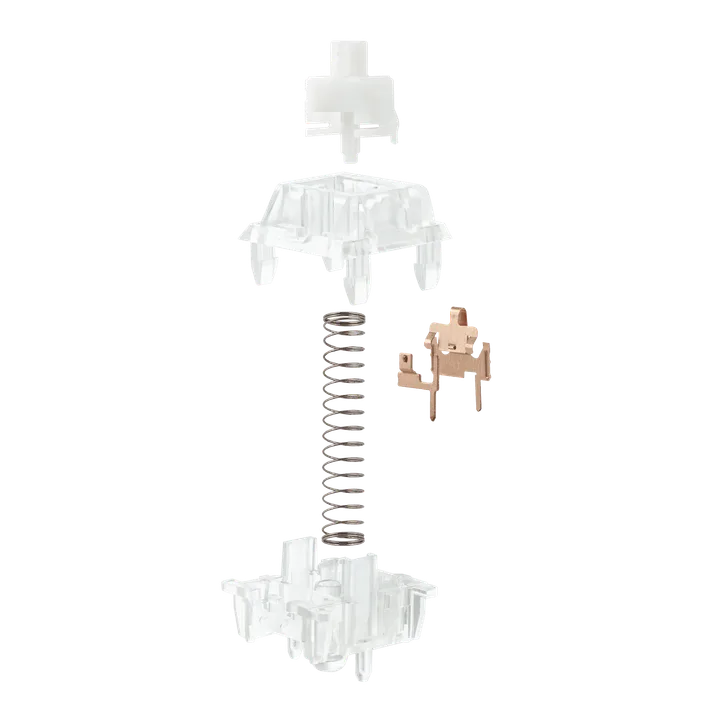

Structure diagram
Basic specs
| Mount | MX |
|---|---|
| Footprint | MX |
| Keycap stem | MX stem |
| Key pitch(mm) | 19.05 (MX) |
| Pins | 5 |
| Silent | − |
| RGB | ● |
| Factory lubed | ● |
| Stem material | POM |
| Top housing material | PC |
| Bottom housing material | PC |
| Protecting cover material | − |
| Slider material | − |
| Light guide | − |
| Spring material and plating | − |
| Contact material | − |
Detailed specs
| Model number | − |
|---|---|
| Series | − |
| Type | Tactile |
| Actuation force(gf) | 35 ±5 |
| Bottom-out force(gf) | 52 ±5 |
| Tactile force(gf) | − |
| Return force(gf) | − |
| Pre-travel(mm) | 2.0 ±0.4 |
| Total travel(mm) | 3.6 ±0.4 |
| Tactile position(mm) | − |
| Operating life(Cycle) | 50 × 10⁶ or more |
| Spring stages | − |
| Spring length(mm) | − |
| Spring weight(gf) | − |
Data updated: 2026-05-27
